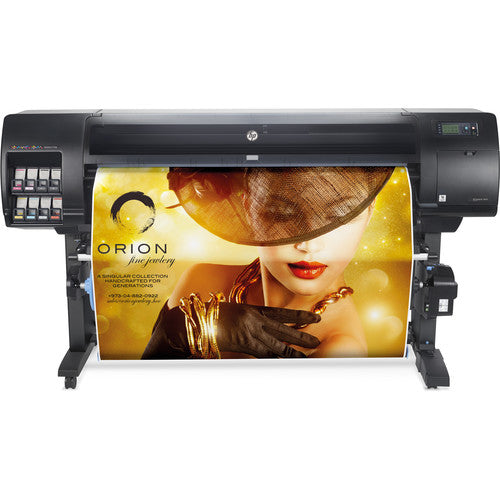

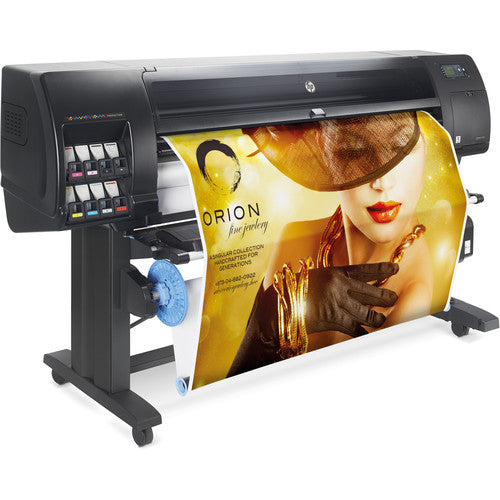

Get professional-quality output and help your customers stand out from the crowd with the DesignJet Z6810 60" Production Printer from HP. Designed to work with long roll media up to 60" wide, the Z6810 provides an impressive 2400 x 1200 dpi print resolution and includes a printer stand. A high-impact graphics printer that produces detailed maps and line drawings, as well as fine-art photos and posters, the Z6810 features an embedded spectrophotometer, which provides consistent and accurate color from one print to the next. Additionally, HP Professional Pantone color emulation ensures you meet your customer's expectations for precise colors. HP Click printing software enables one-click printing, and with the unit's 500GB hard disk capacity you can easily create content while simultaneously managing multiple jobs.
General Features
- 2400 x 1200 dpi print resolution for professional-quality output
- Produces detailed maps and line drawings, as well as fine-art photos and posters
- Embedded spectrophotometer provides consistent and accurate color from one print to the next
- HP Professional Pantone color emulation ensures precise colors
- HP Click printing software for one-click printing
- Integrates with market-leading RIPs
- 500GB hard disk capacity for simultaneously managing multiple jobs
Software Included
- HP Click
- HP Applications Center
- HP DesignJet Utility including HP Color Center
HP Z6810 Specs
| Functions |
| Printing Technology | Inkjet |
| Color Type | Color |
| Configuration | 8 x Individual Cartridge |
| Ink Type | Pigment-Based (Chromatic Red, Cyan, Light Gray, Light Magenta, Magenta, Matte Black, Photo Black, Yellow) |
| Ink Color | 1 x Cyan 1 x Magenta 1 x Yellow 1 x Matte Black 1 x Photo Black 1 x Chromatic Red 1 x Light Gray 1 x Light Magenta |
| Compatible Ink Cartridges | HP 771, HP 773 |
| Print Resolution | 2400 x 1200 dpi |
| Borderless Printing | No |
| Printer Language | Standard: CALS G4, HP-GL/2, HP-RTL Optional: Adobe PDF 1.7, Adobe PostScript 3, JPEG, TIFF |
| Print Speed (By Time) | 1500 ft² / 140 m² per Hour (Max Speed) 283 ft² / 26.3 m² per Hour (Normal) 141 ft² / 13.1 m² per Hour (Best Quality) |
| Paper Handling | Media Bin, Media Cutter, Roll Feed, Take-Up Reel |
| Media Sizes | Roll Width: 11 to 60" / 27.9 to 152.4 cm |
| Media Thickness | Roll: 22 mil / 0.6 mm |
| Margins | Roll 0.2" / 5.1 mm (Leading, Sides, Trailing) |
| Interface | RJ45 |
| Hard Drive | 500 GB |
| Internal Memory | 64 GB |
| Operating System Support | Windows, macOS/OS X |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 20 to 80% |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 270 W (Maximum) 48 W (Ready) 5.3 W (Sleep) 0.3 W (Off) |
| Max Acoustic Noise | 53 dBA (Pressure) 7 BA (Power) |
| Dimensions (W x H x D) | 95.7 x 53.9 x 27.2" / 243.1 x 136.9 x 69.1 cm |
| Weight | 419 lb / 190.1 kg |
| Warranty Length | Limited 1-Year Warranty |
