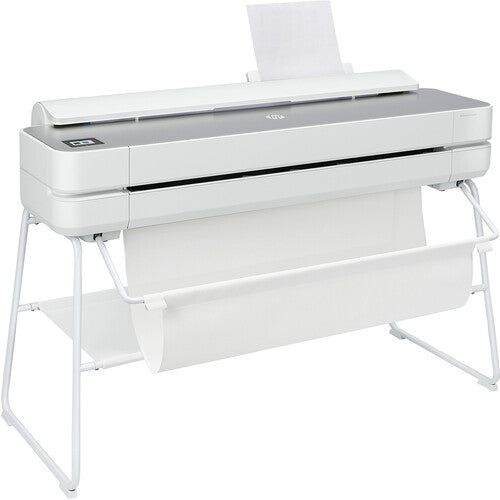

The DesignJet Studio Steel 36" Large Format Wireless Plotter Printer with High-Tech Steel Design from HP features a modern office design that compliments its environment and performance. This plotter printer is suitable for AEC, GIS, and MCAD professionals who need to print maps, technical drawings, posters, and renderings with precise, accurate line quality and crisp text. Print resolution is an impressive 2400 x 1200 dpi, and this powerful unit accepts roll and sheet media up to 36" wide. Designed for speed and efficiency, you can send multiple files in one click with HP Click software, and 22 x 34" media can be printed in 25 seconds. Additionally, with the HP Smart app, you can wirelessly manage and print your jobs from a smartphone or tablet.
- Designed for AEC, GIS, and MCAD professionals
- Prints maps, technical drawings, and posters
- Suitable for line drawings, presentations, and renderings
- Manages multiple files in one click with HP Click software
- Mobile printing via HP Smart app
- Compatible with roll and sheet media
- Prints 22 x 34" media in 25 seconds
- Large media bin for collecting print jobs
HP Studio Steel Specs
| Functions |
| Printing Technology | Thermal Inkjet |
| Color Type | Color |
| Configuration | 4 x Individual Cartridge |
| Ink Type | Dye-Based (Cyan, Magenta, Yellow) Pigment-Based (Black) |
| Ink Color | 1 x Black 1 x Cyan 1 x Magenta 1 x Yellow |
| Compatible Ink Cartridges | HP 712 |
| Print Resolution | 2400 x 1200 dpi |
| Borderless Printing | No |
| Printer Language | CALS G4, HP-GL/2, HP-RTL, JPEG, URF |
| Minimum Line Width | 0.79 mil / 0.02 mm |
| Line Accuracy | ±0.1% |
| Print Speed (By Size) | 22 x 34" / 558.8 x 863.6 mm: 25 Seconds |
| Paper Handling | Manual Feed, Media Cutter, Roll Feed |
| Media Sizes | Sheet Width: 8.3 to 13" / 21.1 to 33 cm Roll Width: 8.3 to 36" / 21.1 to 91.4 cm Sheet Length: 11 to 74.7" / 27.9 to 189.7 cm |
| Media Thickness | 11.8 mil / 0.3 mm |
| Margins | Sheet/Roll 0.2" / 5.1 mm (Leading, Sides, Trailing) |
| Interface | USB 2.0, RJ45 |
| Wireless | Wi-Fi |
| Direct Printing | HP Smart |
| Internal Memory | 1 GB |
| Operating System Support | Windows |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 35 W (Maximum) 5.6 W (Ready) 2.1 W (Sleep) 0.2 W (Standby) |
| Dimensions (W x H x D) | 51.9 x 36.7 x 21.9' / 1581.9 x 1118.6 x 667.5 cm (with Stand) |
| Weight | 91.9 lb / 41.7 kg |
| Package Weight | 137 lb |
| Box Dimensions (LxWxH) | 55 x 22.5 x 20" |
