The BrightLink 696Ui Full HD 3LCD Ultra Short-Throw Interactive Projector from Epson features a Full HD WUXGA display and 3800 lumens of color and white brightness. The 696Ui delivers dynamic images up to 100" from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen and touch-based interactivity, up to two pens or six users at one time. You can wirelessly display content from a variety of devices including Chromebooks using the Epson iProjection App with Moderator device management software. In addition, it includes a 1-year subscription to SMART Notebook.
- 3LCD, 3-chip technology with 3,800 lumens color/white brightness
- Up to 100" display for clear legibility and visibility from anywhere in the room
- Pen- and touch-based interactivity allows up to six users to draw, share, and collaborate at once using familiar gestures
- Wirelessly connect up to 50 devices, simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, Windows, Mac, iOS, and Android devices
- Easy content sharing between the big screen and wirelessly connected mobile devices, for individualized learning
- Seamless integration with curriculum software, includes 1-year subscription and support for SMART Notebook
- Ultra short-throw interactive 100" display image from as little as 11" away with virtually no shadow interference
- Lamps lasts up to 10,000 hours in ECO mode
- Install two BrightLink displays side-by-side to create one seamless interactive surface
UPC: 010343928572
Epson 696UI Specs
Image Display
| Display System | 3-Chip LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Max Brightness | 3800 Lumens |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 16000:1 |
Lens
| Focus | Manual |
| Lens | f/0 - 1.6 (f = 0 - 4.2 mm) |
| Throw Ratio | 0.28 to 0.37:1 |
| Projection Size | 70.4 - 100" / 178.82 - 254.00 cm |
Features
| Keystone Correction | Horizontal: ± 3° Vertical: ± 3° |
Input/Output Connectors

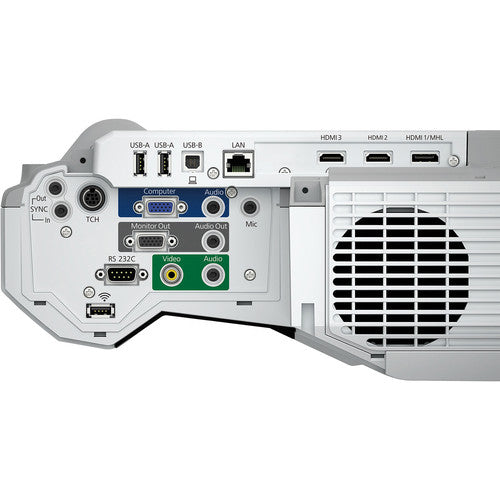

| Inputs/Outputs | 2 x HDMI Video (Input) 1 x HDMI with MHL Support Video (Input) 1 x VGA (DE-15) Video (Output) 1 x Composite (RCA) Video (Input) 2 x 1/8" / 3.5 mm Mini Audio (Output) 1 x USB Type-B Female (Input) 2 x USB Type-A Male (Input) 1 x RS-232C (Unspecified Connector) Service (Input/Output) 1 x VGA (DE-15) Video (Input) |
General
| Lamp Power | 267 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 37 dB Low Brightness: 30 dB |
| Security | Password Protection Security Bar |
| Power Consumption | Medium Brightness: 425 W Medium Brightness: 2.9 W |
| Max Operating Altitude | 20' / 6 m |
| Temperature | Operating 41 to 104°F (5 to 40°C) |
| Dimensions (W x H x D) | 18.7 x 17.6 x 5.1" / 47.5 x 44.7 x 13.0 cm |
| Weight | 18.3 lb / 8.3 kg |
Packaging Info
| Package Weight | 54.6 lb |
| Box Dimensions (LxWxH) | 31 x 22.5 x 13" |
